Box Cladding
The AMS Box Cladding System provides a long-term sustainable solution to externally fixed timber products often placed within modern facades and/or internal feature walls. The system has a visual face width of 200 mm and has a concealed fixing in the underside. Our cutting-edge box cladding solution is the perfect blend of style and functionality, offering a myriad of benefits to elevate your space.

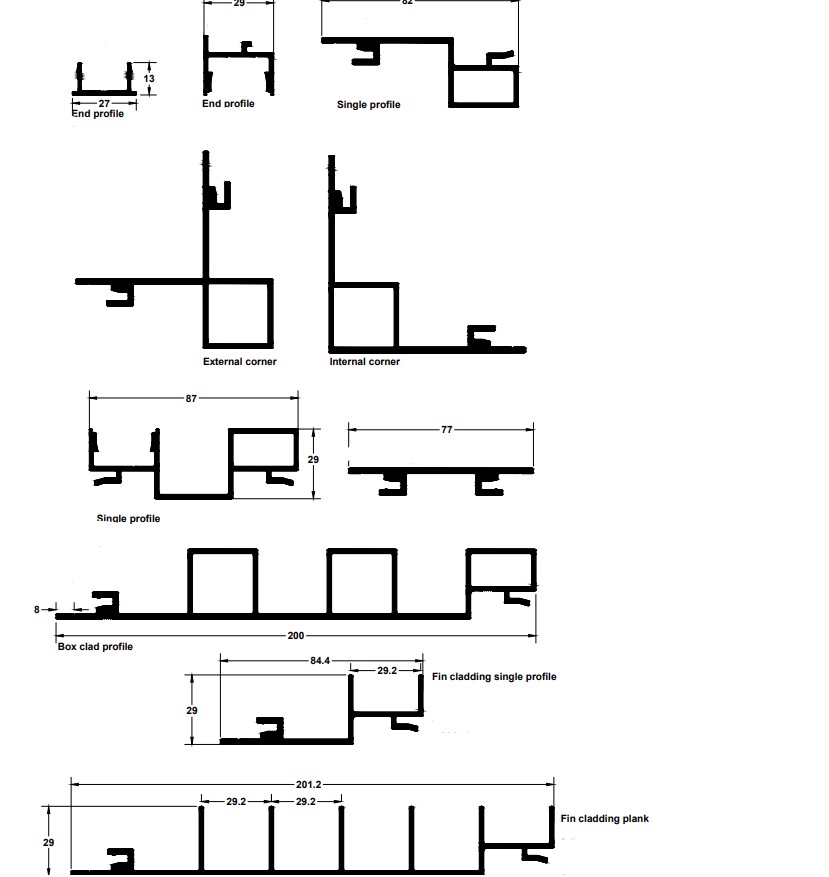

The AMS Box Cladding System is an external and/or internal profile system that provides a long-term sustainable solution to traditional timber products. Engineered to withstand the harshest elements, our solution acts as a robust barrier against rain, wind, snow, and UV rays. The system has a visual face width of 200 mm with a concealed fixing detail. Various trimming options are available for a neat and clean perimeter/interface finish. The system offers an aesthetically pleasing look without the maintenance demands of timber systems.
- Concealed fixing detail
- Horizontal or vertical
- End trim for internal & external corner details
- Head a cill trims for neat end detail
- Extremely low maintenance
- Greater design life compared to timber products
Weather
- Tested to CWCT standards, sequence B
- Air classification – A4: 600 Pa
- Water tightness, static – R7: 600 Pa
- Wind resistance, serviceability – 2400 Pa
- Water tightness, dynamic – Pass
- Water tightness hose test – Pass
- Impact resistance – Class 5
Other
At AMS we can help you bring your design to life with our wide range of paint colours and finishes. We offer a varied choice of architectural polyester powder coated finishes, including dual colour as standard, that are guaranteed through the `Qualicoat‘ approved applicator scheme, of which AMS is a continuing member.
All polyester powder coating is carried out in-house on a state-of-the-art vertical paint line. Our eight stage chromate free pre-treatment process meets all of the latest environmental legislation and ensures a quality finish and service every time.
- The system available in standard RAL colour and can also have Decoral' wood finish applied. Please refer to AMS Technical Department as to the suitability of finish for exterior application. Colours may vary per batch and vary to the colours shown in the colour wheel below
