T&G Cladding

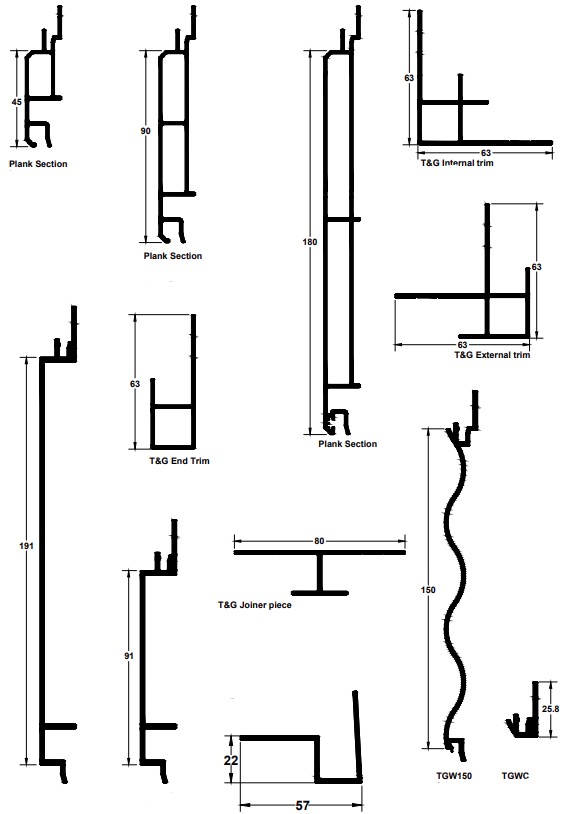

The T&G Panel System provides a long term sustainable solution to externally fixed timber products often placed within modern facades. The system has a visual face width of 90 mm & 180 mm and the planks have a concealed fixing in the underside to give a timber tongue and groove cladding finish.
The T&G Cladding System is an external profile system that provides a long-term sustainable solution to where externally fixed timber products are aesthetically required for design. The system has a visual face width of 45, 90 and 180 mm contain a concealed fixing detail to give an unobstructed tongue and groove cladding finish. Various trimming options are available for a neat and clean perimeter/interface finish. The system offers the T&G look similar to timber tongue and grooving but without the maintenance demands of timber systems.
- Tongue and grooved system
- Concealed fixing detail
- Horizontal or vertical
- End trim for internal & external corner details
- Head a cill trims for neat end detail
- Extremely low maintenance
- Greater design life compared to timber products
Weather
- Tested to CWCT standards, sequence B
- Air classification – A4: 600 Pa
- Water tightness, static – R7: 600 Pa
- Wind resistance, serviceability – 2400 Pa
- Water tightness, dynamic – Pass
- Water tightness hose test – Pass
- Impact resistance – Class 5
Other
At AMS we can help you bring your design to life with our wide range of paint colours and finishes. We offer a varied choice of architectural polyester powder coated finishes, including dual colour as standard, that are guaranteed through the `Qualicoat‘ approved applicator scheme, of which AMS is a continuing member.
All polyester powder coating is carried out in-house on a state-of-the-art vertical paint line. Our eight stage chromate free pre-treatment process meets all of the latest environmental legislation and ensures a quality finish and service every time.

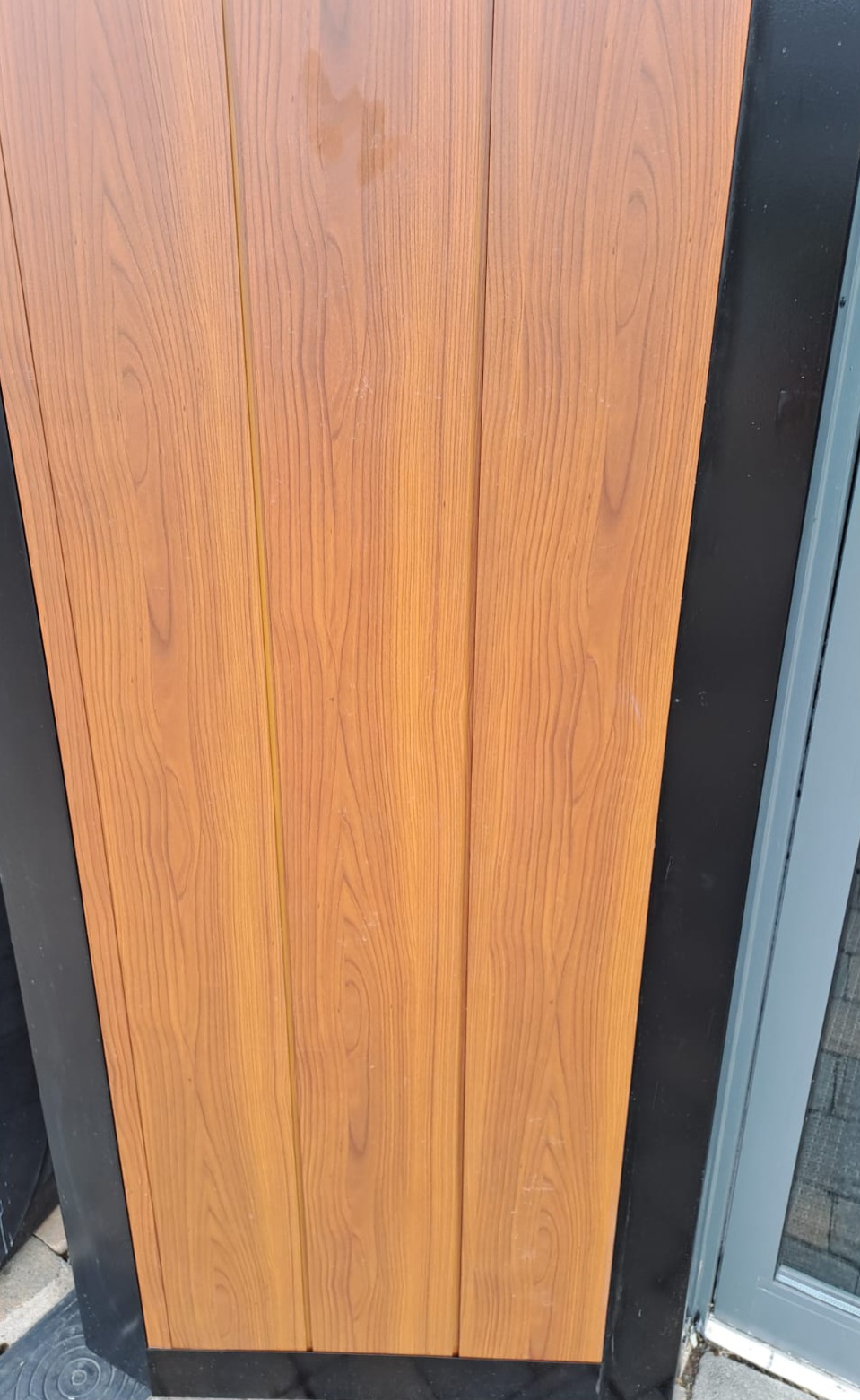

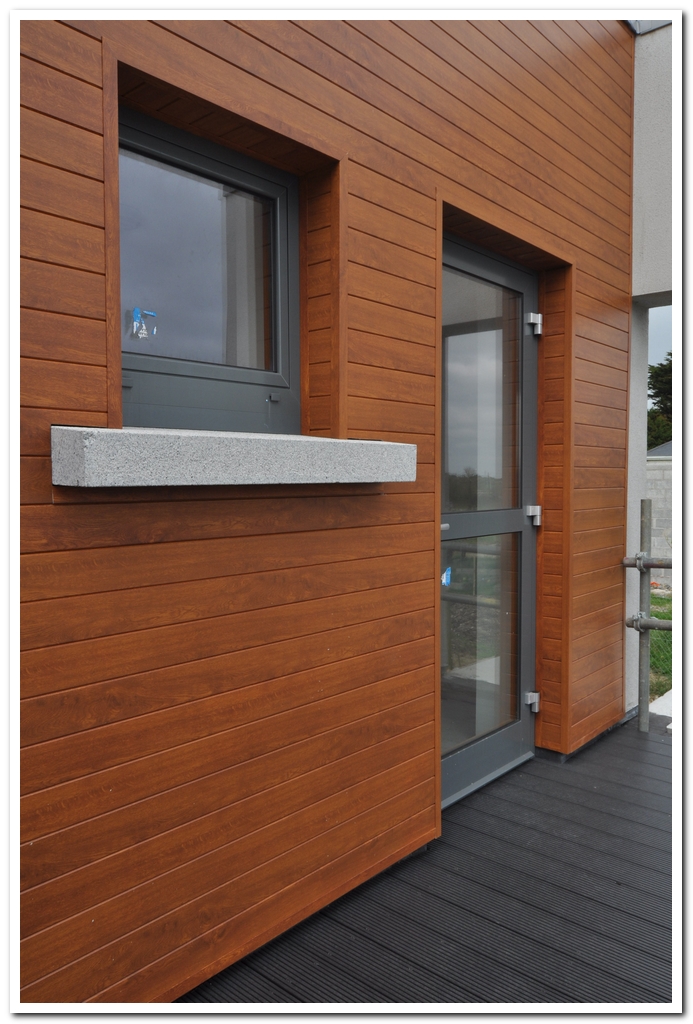

- The system available in standard RAL colour and can also have Decoral' wood finish applied. Please refer to AMS Technical Department as to the suitability of finish for exterior application. Colours may vary per batch and vary to the colours shown in the colour wheel below
See More Examples of Our Work. AMS product ranges include aluminium extrusion profiles amongst others and our service ranges span a vast number of projects and industries from engineering, signage, data centres to commercial, residential, healthcare and education to name a few.
AMS see the many positive benefits in contributing to corportate and social responsibility. Our company is built on the premise of being responsibe through the supply of aluminium products which is 100% recyclable.
