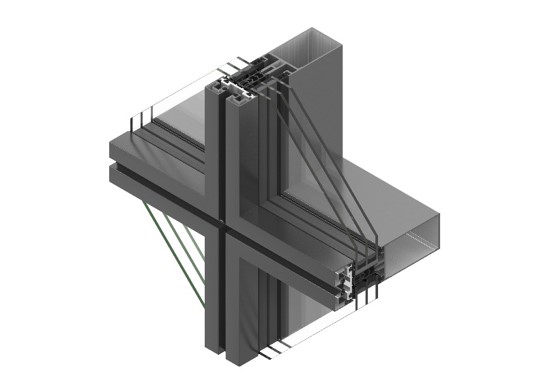

MU800 Hi
The MU800 Hi Curtain Wall System is a high performance mullion drained system that offers sight-lines of 55 mm and includes a vast array of capping options. This system has a large selection of mullion and transom configurations, with Ix values ranging from 54 cms4 up to 3771 cms4 allowing greater spans and accommodating larger glazed units.
Our mullion drained curtain wall system is tested to all the latest BS, EN and CWCT standards. MU800Hi is available in a wide range of mullion and transom combinations offering greater design flexibility while ensuring structural integrity. The system can be zone drained through the use of our unique engineered products which is particularly suited for high-rise applications.
Glazing options for MU800Hi range from 28 to 54 mm in depth which greatly enhances the thermal performance of a façade.
The MU800 Hi curtain walling system is suitable for both vertical and sloped glazing applications and is designed to exceed the latest thermal and structural requirements of the building regulations.
It is designed to exacting standards ensuring quality, strength and durability providing for many years of aesthetic, sustainable and trouble-free performance. The clever design allows for seamless integration of all our window and door systems.

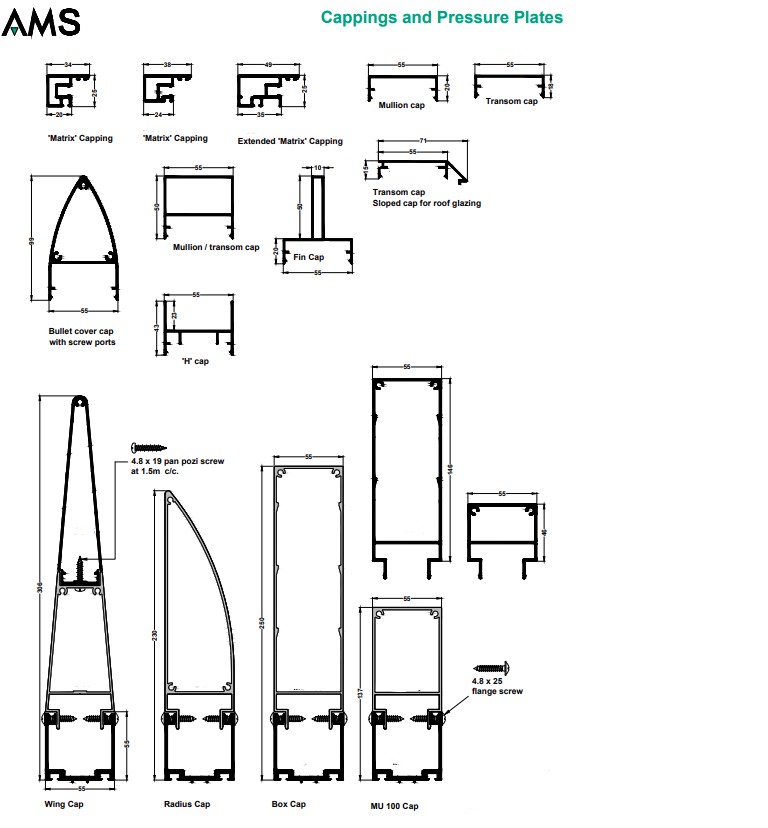

- Flexibility in deign with extensive range of capping options
- Various profile strength for high rise and low-level applications. Mullion size Ix values ranging from 54 cm^4 up to 3771 cm^4
- Fully compatible with various windows and doors
- Ease of fabrication and installation with the latest manufacturing techniques
- Bespoke design with in-house extrusion and design facilities
- Slim 55 m sightline throughout the curtain wall suite of profiles
- Full range of RAL and specialised finishes as standard
- Qualicoat' certified paint - Qualicoat Certificate
- Powder Coating available - Syntha Pulvin, Axalta,Interpon,Tiger, IGP
- Anodised finish available
- Project specific guarantees on request
- Decoral' finishes - Please refer to AMS Technical Department as to the suitability of finish for exterior application.
Weather
- Tested to CWCT standards, sequence B
- Air classification – A4: 600 Pa
- Water tightness, static – R7: 600 Pa
- Wind resistance, serviceability – 2400 Pa
- Water tightness, dynamic – Pass
- Water tightness hose test – Pass
- Impact resistance – Class 5
Other
At AMS we can help you bring your design to life with our wide range of paint colours and finishes. We offer a varied choice of architectural polyester powder coated finishes, including dual colour as standard, that are guaranteed through the `Qualicoat‘ approved applicator scheme, of which AMS is a continuing member.
All polyester powder coating is carried out in-house on a state-of-the-art vertical paint line. Our eight stage chromate free pre-treatment process meets all of the latest environmental legislation and ensures a quality finish and service every time.
