XT66 Performance Plus Casement Window
The AMS XT66 Performance Plus Window System is the latest offering from Architectural & Metal Systems in Cork. The XT66 Performance Plus window system builds on the unique and patented “XT” thermal break technology platform, developed in-house by AMS.
Following on from the highly successful AMS XT66 window and door system, the XT66PP incorporates upgraded features. These design enhancements offer the client increased thermal efficiency and weather tightness which have been achieved with the introduction of a new gasketing configuration and component upgrades. The XT66 Performance Plus System has been fully tested and is available in the same wide range of finishes that AMS offers.

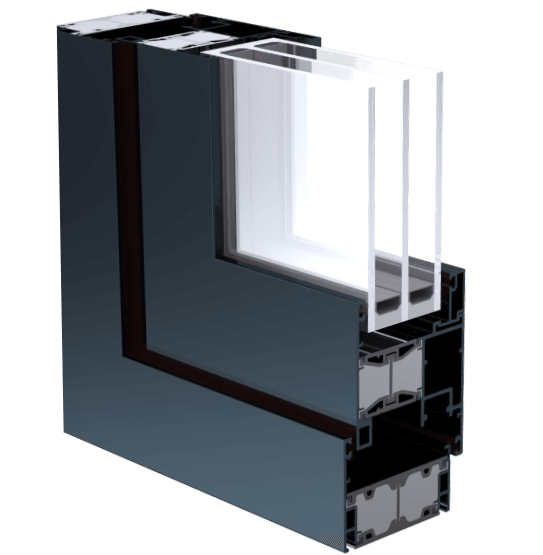

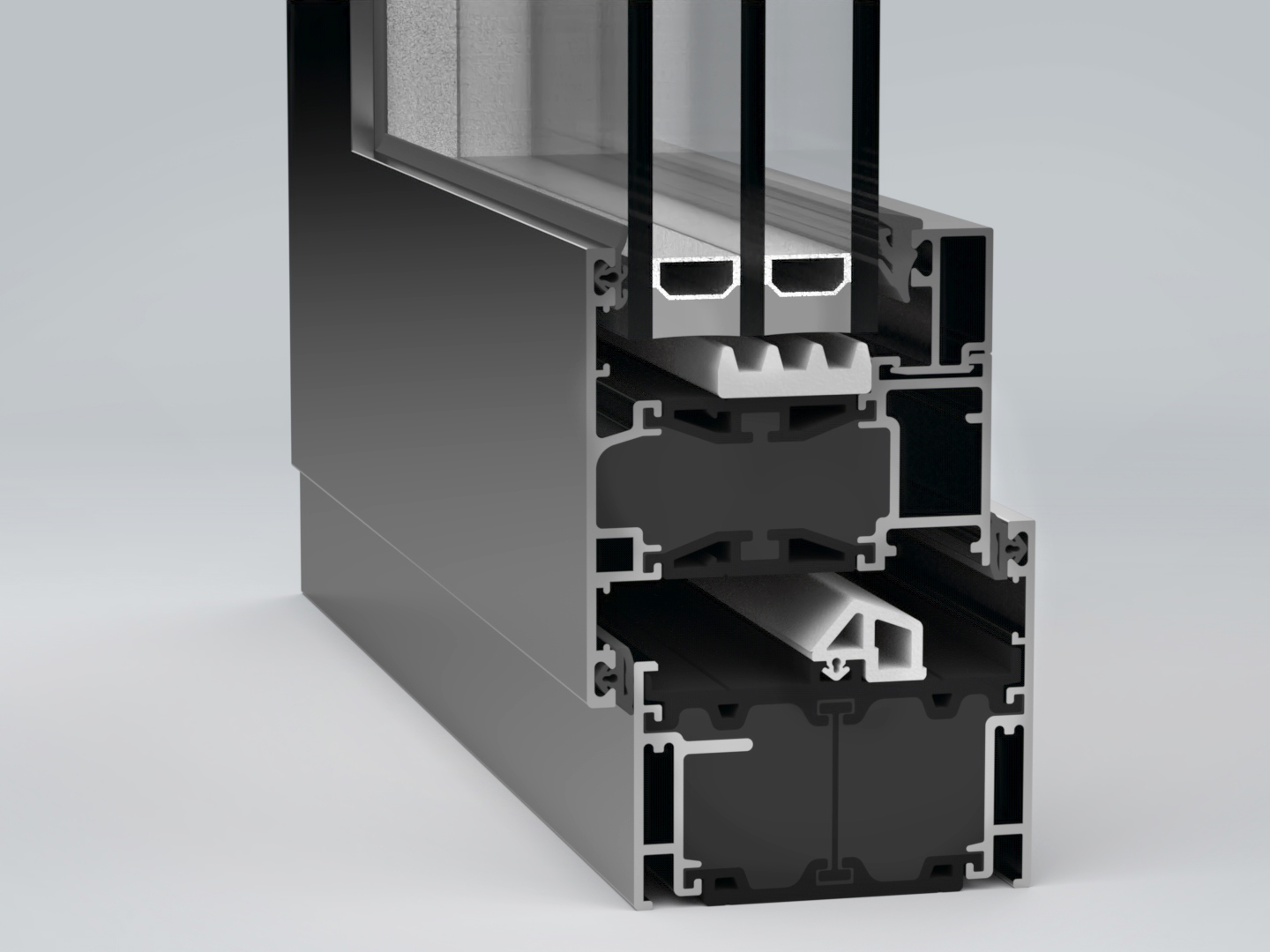

Measuring 66mm in depth, the XT66 Performance Plus suite of profiles has a range of equal and unequal leg sections to accommodate all anticipated framing options. The system can be glazed both internally and externally with double & triple glazed units from 28mm through to 48mm.
The XT66 Performance Plus casement window system has been fully tested per IS EN 14351-1:2006+A2:2016 and security tested to PAS24:2022.
- Opening options: Top hung, side hung, parallel opening
- Internally or externally beaded
- Can accommodate units up to 48mm in thickness

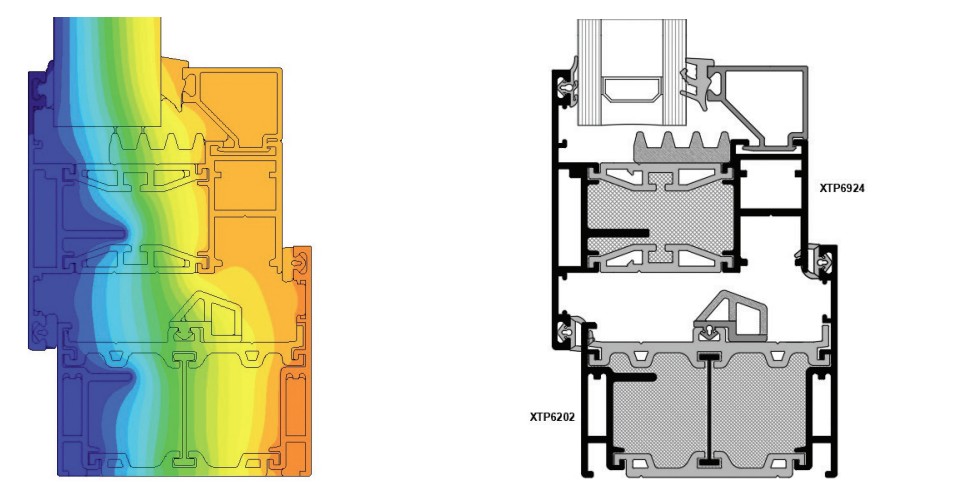

- Advanced patented thermal technology
- Full range of RAL and specialised finishes available
- Offers the CENsolutions Gold Standard Certification
- Full range of RAL and specialised finishes available
- Offers the CENsolutions Gold Standard Certification
- Qualicoat' certified paint - Qualicoat Cert
- Powder Coating available - Syntha Pulvin, Axalta,Interpon,Tiger, IGP
- Anodised finish available
- Secured by Design security certified
- Decoral' finishes - Please refer to AMS Technical Department as to the suitability of finish for exterior application.
• Air Classification – A4: 600 Pa.
• Water Tightness – E1050: 1050 Pa.
• Wind Resistance – E2400: 2400 Pa.
• Resistance to racking – Class 3.
• Resistance to static torsion – Class 3.
• Resistance to repeated opening and closing – Class 3 (20,000 cycles).
• Operating forces – Class 1.
• Security – PAS24:2022.
